Solving Epoxy Resin Brittleness with the Toughening Effect of CTBN

luozhu

·June 1, 2026

·6 min read

You can solve epoxy resin brittleness with the toughening effect of CTBN. When you add CTBN, you make the resin flexible and strong.

Peel strength rises from 3.61 N/mm to 5.70 N/mm.
Shear strength grows from 12.98 MPa to 17.39 MPa.
This change prevents cracks and boosts durability.

Key Takeaways

Adding CTBN to epoxy resin significantly increases toughness and flexibility, making the material more durable and resistant to cracks.
Using 15% CTBN by weight provides the best balance of performance, enhancing elongation at break by 32% and impact strength by 31%.
Proper mixing and storage of CTBN are crucial for achieving optimal results; ensure even distribution before curing for maximum effectiveness.

Understanding Epoxy Resin Brittleness

Structural Causes of Brittleness

You may notice that epoxy resin can break easily under stress. This happens because of changes at the molecular level. Here are some key reasons:

Oxidation changes the structure of the resin and makes it less flexible.
Chain scission lowers the molecular weight between crosslinks, which increases brittleness.
More crosslinking creates a dense network, reducing ductility and making the resin stiff.
Water can weaken the resin. When water molecules interact with the resin, they change its physical and mechanical properties.
Type I bound water acts like a plasticizer. It weakens the forces between polymer chains, which can make the resin more likely to crack.

You can also face problems from how you mix and use epoxy resin. The table below shows common structural weaknesses that lead to cracks:

Structural Weakness	Description
Heat Buildup	High temperatures during thick pours cause shrinkage and tension, leading to cracks.
Incorrect Mixing Ratios	Wrong ratios make the epoxy brittle and easy to crack under stress.
Poor Substrate Preparation	Dirty surfaces prevent good bonding, causing delamination and stress points.

Common Problems in Applications

Brittle epoxy resin can cause many issues in real-world uses. You might see:

Brittle fracture, where equipment cracks suddenly under stress. This often happens at soldered joints in circuit boards during assembly or transport.
Thermal failure, which occurs when parts get too hot and pass their glass transition temperature. This can lead to burning or permanent damage.

Tip: Understanding these problems helps you choose the right additives, like CTBN, to make your epoxy resin tougher and more reliable.

Toughening Effect of CTBN in Epoxy Resins

What Is CTBN?

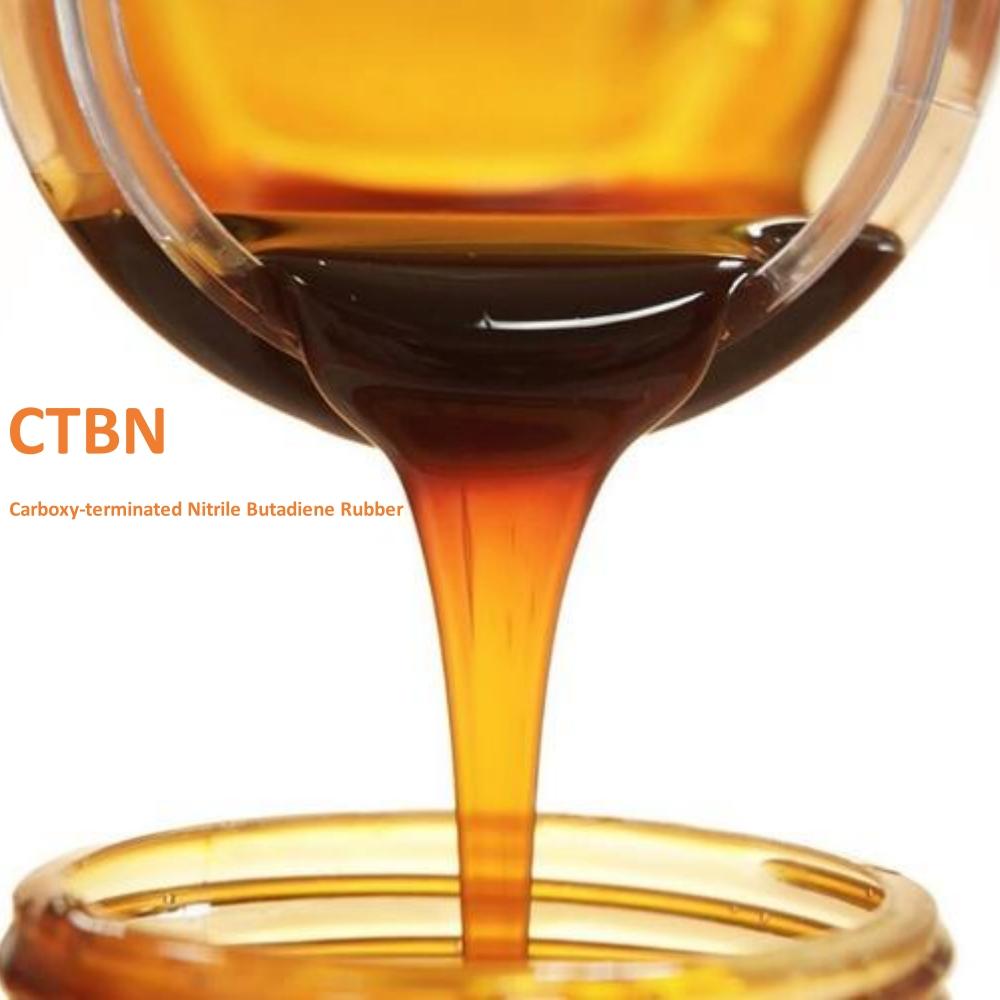

You may wonder what CTBN stands for. CTBN means Carboxyl-Terminated Butadiene Acrylonitrile. This material is a liquid rubber made by combining butadiene and acrylonitrile. The process creates a polymer with carboxyl groups at the ends. These carboxyl groups help CTBN react with epoxy resin. When you mix CTBN with epoxy, you get a prepolymer that can improve toughness. The synthesis uses a catalyst called HTMAB. During the reaction, FTIR analysis shows that ester groups form between CTBN and epoxy resin. This chemical change is important for the toughening effect of CTBN.

CTBN-EP prepolymers are made from CTBN and epoxy resin.
The reaction forms ester groups, confirmed by FTIR analysis.
CTBN is a polymer with carboxyl groups, created by reacting butadiene and acrylonitrile.

CTBN Structure and Compatibility

The structure of CTBN makes it compatible with epoxy resin. The carboxyl groups on CTBN can interact with the epoxide groups in epoxy. This interaction helps CTBN mix well with epoxy before curing. You get better results when CTBN reacts with epoxy in the pre-crosslinking stage. The reaction forms copolymers that improve adhesion between CTBN and the epoxy matrix. The molecular weight of CTBN also matters. Higher molecular weight can affect how well CTBN mixes with epoxy and how the material separates during curing. This influences the final toughness and flexibility of the resin.

Note: The compatibility of CTBN with epoxy resin depends on both the chemical structure and the molecular weight. You can achieve better toughening effect of CTBN by optimizing these factors.

Mechanisms of Toughening Effect

You see the toughening effect of CTBN through several molecular-level mechanisms. When you add CTBN to epoxy resin, the two materials start as a homogeneous mixture. As curing progresses, CTBN reacts with the matrix and its molecular weight increases. This causes CTBN to become immiscible, leading to phase separation. The butadiene part of CTBN gives the material a low glass transition temperature. This allows the resin to absorb energy and resist cracking, even at low temperatures. Acrylonitrile improves the initial mixing of CTBN in epoxy by increasing polarity.

The phase separation creates rubber-rich domains inside the epoxy. These domains change how cracks move through the material. Cracks must pass around or through these toughened areas, which increases the energy needed to break the resin. You get a composite that is much tougher than pure epoxy. Studies show that adding CTBN can increase fracture toughness by about 70.7%. The toughening effect of CTBN depends on the size and distribution of these domains. If you control the molecular weight and particle size, you can maximize the toughening effect of CTBN.

Improvements in Crack Resistance and Flexibility

When you add CTBN to epoxy resin, you see clear improvements in crack resistance and flexibility. The toughening effect of CTBN changes the way the material responds to stress. Cracks do not spread as easily, and the resin can bend more before breaking. You can measure these improvements with tests for fracture toughness and elongation at break.

CTBN Addition (%)	Elongation at Break Increase (%)	Impact Strength Increase (%)
15	32	31

You can see that with 15% CTBN, elongation at break increases by 32%. Impact strength rises by 31%. Other studies show that fracture toughness can increase from 0.82 MPa·m1/2 to 1.46 MPa·m1/2 with the addition of core–shell rubber. When you combine CTBN with other toughening agents, you can achieve even higher improvements.

Tip: You can optimize the toughening effect of CTBN by adjusting the content and controlling the particle size. Smaller particles improve tensile and flexural strength, while larger particles may reduce performance.

The toughening effect of CTBN helps you create epoxy resins that resist cracks and handle stress better. You get materials that are more flexible and durable, making them suitable for demanding applications.

Practical Benefits and Optimization

Performance Enhancements with CTBN

You can see clear improvements in epoxy resin when you add CTBN. The toughening effect of CTBN helps you get better results in many ways:

Elongation at break increases by 32% at 15 wt.% CTBN, reaching up to 2.0%.
Impact strength rises to 11.2 kJ/m², which is 31% higher than without CTBN.
Fracture toughness improves by as much as 70.7% compared to pure epoxy.

You also get better resistance to acids, alkalies, and solvents when you use 15 wt.% CTBN. The thermal stability of your epoxy resin increases, making your materials last longer in tough environments.

Limitations and Considerations

You need to pay attention to the amount of CTBN you use. The table below shows how CTBN content affects performance:

CTBN Content (wt.%)	Elongation at Break (%)	Impact Strength (kJ/m²)
0	1.5	8.5
15	2.0	11.2
20	Significant drop	N/A

If you add too much CTBN, you may see a drop in performance. You should also know that CTBN can change the curing process and the hardness of your epoxy. Studies show that CTBN affects the curing kinetics and the final properties of the resin.

Best Practices for CTBN Use

You can get the best results by following these tips:

Use 15 wt.% CTBN for a good balance of toughness and flexibility.
Mix CTBN well with epoxy before curing to get even phase separation.
Store CTBN in a cool, dry place and avoid direct sunlight.
Test your final product to make sure it meets your needs.

The toughening effect of CTBN gives you a way to make epoxy resins stronger, more flexible, and more durable for many uses.

You can solve epoxy resin brittleness with the toughening effect of CTBN. This approach increases toughness, keeps mechanical properties strong, and boosts performance in low temperatures. See how CTBN improves durability:

Aspect	Impact of CTBN
Toughness	Increased fracture toughness
Low-temperature performance	Enhanced performance in low temperatures
Mechanical properties	Maintained without significant reduction

FAQ

What is the main benefit of adding CTBN to epoxy resin?

You make your epoxy resin tougher and more flexible. CTBN helps your material resist cracks and damage in tough conditions.

How much CTBN should you use for best results?

You get the best balance of toughness and flexibility with 15% CTBN by weight. This amount works well for most applications.

Can you use CTBN-modified epoxy in outdoor projects?

Yes! CTBN-modified epoxy resists weather and temperature changes. You can use it for outdoor coatings, adhesives, and construction materials.
