Stop Slamming Doors with These Top Door Hinges
Selecting the best top door hinges ensures a quiet and secure home. A top hinges manufacture provides excellent solutions for every need.
- Best Overall: The Waterson Heavy Duty Self-Closing Hinge delivers a superior combination of silent, controlled closing and exceptional durability for most exterior doors.
- Best for Heavy Doors: This commercial-grade Waterson Heavy Duty Self-Closing Hinge has a high load capacity, perfect for solid wood or oversized doors.
- Best Budget Option: The Dynasty Hardware Spring Hinge is an affordable and reliable choice for standard residential doors.
Detailed Reviews of the Top Door Hinges
Choosing the right hardware is crucial for door performance and longevity. A detailed look at our recommended models reveals why they stand out. This review examines the key features, materials, and certifications that make these the top door hinges available.
Waterson Heavy Duty Self-Closing Hinge (Best Overall)
The Waterson Heavy Duty Self-Closing Hinge represents the pinnacle of hinge engineering, combining a door closer and a heavy-duty hinge into one sophisticated unit. Its design provides a silent, controlled close that eliminates slamming doors entirely.
This hinge’s exceptional performance starts with its material composition and manufacturing.
- Material Composition: It is constructed from high-grade stainless steel for immense durability. The material includes chromium, which significantly enhances its corrosion resistance.
- Manufacturing Process: A precision casting process ensures consistent quality and structural integrity. This process is validated by extensive testing, proving the hinge’s reliability. Welded connections further bolster its strength, creating a permanent and secure attachment.
Durability is a core metric for evaluating top door hinges, and Waterson excels in this area. The hinge is certified to ANSI/BHMA A156.17 Grade 1 standards. This is the highest grade possible, requiring a product to withstand rigorous testing.
| Grade | Cycles Required (BHMA A156.17 Standard) |
|---|---|
| Grade 1 | 1,000,000 |
| Grade 2 | 500,000 |
| Grade 3 | 250,000 |
Waterson hinges successfully endure over 1,000,000 opening and closing cycles, confirming their Grade 1 status. This hinge also surpasses ASTM B117 standards, withstanding over 200 hours in a 5% salt spray test without failure. In terms of strength, it supports doors weighing up to 440 lbs with the proper configuration. It is available in elegant Matt Black and Brushed Stainless finishes to match modern aesthetics.
Dynasty Hardware 4-inch Spring Hinge (Best Budget)
For homeowners seeking a functional and affordable self-closing solution, the Dynasty Hardware Spring Hinge is an excellent choice. This hinge offers reliable performance for standard-sized residential doors without the premium price tag. It uses a proven spring-loaded mechanism to automatically pull the door shut, preventing it from being left open and reducing drafts.
While it lacks the advanced hydraulic dampening of commercial-grade models, it effectively gets the job done. Its straightforward design makes it a practical upgrade for interior doors, such as those leading to a garage or basement. Installation is simple for anyone familiar with basic home improvement tasks. This hinge provides a significant boost in convenience and is a great entry point into the world of self-closing hardware.
Hager Residential Spring Hinge (Reliable Alternative)
The Hager Residential Spring Hinge stands as a reliable and well-regarded alternative. It is a robust option that conforms to high industry benchmarks, including BHMA/ANSI A156.17, Grade 1 certification. This certification ensures it meets strict quality and safety standards, making it a trustworthy choice for residential applications.
This hinge offers several notable design elements.
- Construction: It is a 4" x 4" full mortise hinge made from high-quality steel.
- Design: It features 1/4" radius corners and three knuckles for increased strength and stability.
- Functionality: A durable spring pin mechanism provides a consistent self-closing action.
- Compliance: The hinge is also ANSI K81071F compliant.
Note for Installation: Some users report that installing this hinge can be tricky. The instructions may lack clarity for beginners. Be prepared to take extra time and effort during installation to ensure a secure and proper fit.
Despite the potential installation challenge, its certified durability and solid construction make it a dependable component for any home. It is a great example of quality top door hinges that balance cost and performance.
How to Choose the Right Self-Closing Hinge for Your Exterior Door
Selecting the correct self-closing hinge ensures safety, functionality, and longevity for your exterior door. Homeowners should consider several key factors before making a purchase. This guide breaks down the essential elements to help you find the perfect hardware.
Check Your Door's Weight and Size

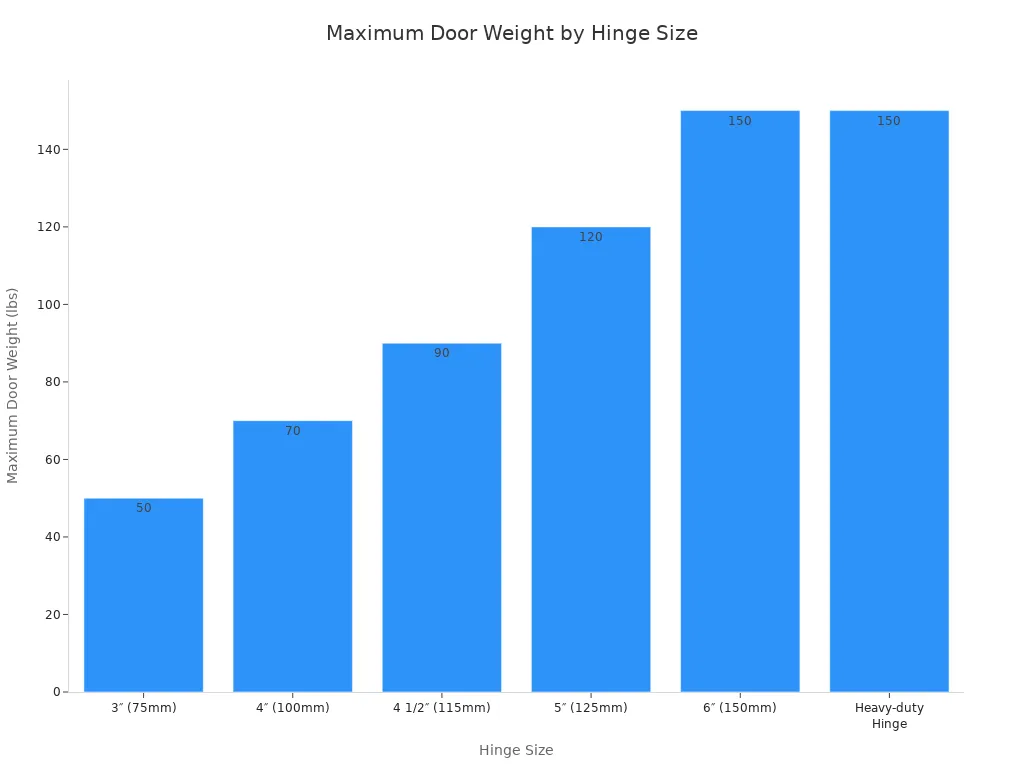

The first step is to determine your door's weight and dimensions. A hinge's load capacity must exceed the door's weight to prevent sagging and failure. Heavier doors made of solid wood or metal require stronger hinges. Standard hinge sizes correspond to specific weight capacities.
- 4″ Hinges: Suitable for most standard interior and exterior doors up to 70 lbs.
- 4 1/2″ Hinges: Recommended for heavier exterior doors weighing up to 90 lbs.
- 5″ Hinges: Designed for heavy-duty exterior or security doors up to 120 lbs.
Select the Right Material and Finish
Exterior doors face harsh weather, so material choice is critical. Stainless steel offers excellent durability and corrosion resistance. For coastal or humid climates, marine-grade 316 stainless steel provides superior protection against saltwater. Products like the Waterson Marine Grade Hinge are specifically designed for these environments.
| Material/Grade | Key Feature for Coastal/Humid Climates |
|---|---|
| Stainless Steel Grade 316 | Enhanced resistance to saltwater and chloride corrosion. |
| Galvanized Steel (Hot-Dip) | Excellent rust protection for steel hinges. |
Understand Adjustability Features
High-quality self-closing hinges offer adjustable settings for a perfect close. Understanding these features helps you customize the door's operation. The best top door hinges provide separate controls for the main closing phase and the final latching motion.
| Feature | Description |
|---|---|
| Adjustable Closing Speed | Controls the door's movement throughout most of its closing cycle. |
| Adjustable Latching Speed | Ensures the door firmly closes without slamming in the final few degrees. |
Measure Hinge Size and Corner Radius
Finally, measure your existing hinges to ensure a proper fit. Most residential doors in North America use hinges with rounded corners. You can easily determine the corner radius.
Quick Tip: Use common coins to measure the radius. A U.S. dime fits a ¼” radius corner, while a quarter matches a 5/8” radius corner. This simple trick ensures you buy the right replacement hinge.
A Quick Guide to Installation
Proper installation is essential for the optimal performance of self-closing hinges. This guide provides a straightforward overview of the process, from gathering tools to making final adjustments. Following these steps ensures a secure fit and smooth operation.
Tools You'll Need
Having the right tools on hand makes the installation process efficient and safe. A professional installer typically uses a specific set of equipment for this task.
- Power drill or screwdriver
- Set of drill bits
- Tape measure
- Pencil or marker
- Safety glasses 👓
- The adjustment tool included with your hinges
Selecting the correct drill bit size is crucial for creating secure pilot holes. The table below matches common drill bit sizes with compatible wood screws.
| Drill Bit Size | Compatible Screw Sizes |
|---|---|
| 5/64″ | #3, #4, #5, #6, #8, #10 |
| 7/64″ | #3, #4, #5, #6, #8, #10 |
| 9/64″ | #3, #4, #5, #6, #8, #10 |
Step-by-Step Installation Process
Installing a self-closing hinge is a manageable project. The process involves removing the old hardware and fitting the new hinge.
- Remove the Old Hinge: Support the door to prevent it from falling. Unscrew and remove the existing middle hinge first.
- Prepare the Mortise: Clean the hinge cutout (mortise) in the door and frame. Ensure it is free of debris.
- Install the New Hinge: Position the new self-closing hinge in the mortise. Drill pilot holes and secure the hinge with the provided screws.
- Repeat for Other Hinges: Replace the top and bottom hinges one at a time. This method keeps the door aligned.
How to Adjust Hinge Tension
Fine-tuning the tension creates the perfect closing speed. Most spring hinges include an adjustment pin and a hex wrench for this purpose.
According to contractor Bar Zakheim, if a spring hinge is too loose, the door may not close completely or it might close very slowly. Conversely, if the spring is too tight, it could cause the door to slam shut or require you to actively hold it open.
To adjust, insert the hex wrench into the tension mechanism and turn it to increase or decrease the closing force. Insert the adjustment pin to lock the setting. Test the door and repeat until you achieve a smooth, latching close without any slamming.
The Waterson Heavy Duty Self-Closing Hinge is the top recommendation for a quiet, secure, and premium solution. It excels in performance and durability.
The most critical step is matching the hinge's load capacity to the door's weight. This ensures both safety and longevity for your top door hinges.
Upgrading your hardware is a simple home improvement project that boosts convenience and security.
FAQ
How many self-closing hinges does a door need?
Most residential doors require one self-closing hinge in the middle position. Heavier doors benefit from two hinges to ensure balanced control and prevent sagging.
Can homeowners mix self-closing and regular hinges?
Yes, mixing hinges is a common practice. Installing one self-closing hinge with two standard hinges provides effective door control while managing costs.
What is the primary benefit of a Waterson hinge?
The Waterson Heavy Duty Self-Closing Hinge integrates a closer and hinge into one unit. It delivers a silent, controlled close and eliminates door slamming entirely.
