Aligned designed the GZPK Series as a high-speed, continuous automatic rotary tablet press for mass production. This Automatic Tablet Press Machine efficiently compresses powder and granular raw materials into uniform tablets, serving the pharmaceutical, food, and chemical industries. The machine's state-of-the-art design fully automates tablet manufacturing to maximize production efficiency and minimize manual labor.

The global tablet press industry's significant growth underscores the need for advanced production solutions:

What Are the Core Features of the GZPK Series?

The GZPK Series from Aligned integrates several advanced features that establish it as a premier solution for modern tablet manufacturing. These capabilities ensure high efficiency, precision, and reliability in demanding production environments.

High-Speed and High-Output Production

Aligned designed the GZPK Series specifically for mass production. The machine's robust mechanical structure and optimized rotary speed enable continuous, high-volume output without compromising quality. This focus on speed makes it an ideal choice for businesses looking to scale their operations significantly. Different models within the series offer varying capacities to meet specific production targets.

Even specialized models like the GZPK15 deliver impressive performance, with a maximum capacity of 65,000 tablets per hour.

Advanced PLC Control System

At the core of the GZPK Series is a sophisticated Siemens PLC control system. This system acts as the central brain, providing precise command over all operational parameters. Operators interact with the machine through a user-friendly Human-Machine Interface (HMI), typically a Siemens or Delta 10-inch color touch screen. This advanced system is central to the reliable operation of the Automatic Tablet Press Machine.

The HMI provides comprehensive control and monitoring with key functionalities:

• Multi-Language Support: The interface displays information in Chinese, English, and other languages for global usability.
• Real-Time Parameter Display: Operators can monitor critical data, including the pressure value for each punch, filling depth, and tablet thickness.
• Advanced Management: The system includes 3-level management authority, product formula management, and functions for CFR 21 Part 11 compliance, such as electronic records and signatures.

System Integration Excellence ⚙️ The PLC seamlessly manages the main components within the electrical control cabinet. It integrates and controls high-quality, low-voltage electrical appliances from trusted brands like ABB, Schneider, and OMRON, ensuring long-term stability.

Automatic Weight Control and Rejection

Maintaining tablet consistency is critical for quality assurance. The GZPK Series features a precise automatic weight control system that continuously monitors tablet parameters. If a tablet deviates from the set specifications, an intelligent single-punch rejection mechanism immediately removes it from the production line.

This process unfolds in a few quick steps:

1. A control unit monitors operational parameters like compression force to identify a defective tablet.
2. The unit instantly activates a control valve upon detection.
3. The valve opens a supply line to an ejection nozzle located nearby for rapid response.
4. The nozzle releases a jet of compressed gas, blowing the faulty tablet into a separate rejection channel.
5. This channel guides the rejected tablet to a dedicated collection outlet, keeping it separate from the quality-approved batch.

This automated quality control ensures that only tablets meeting the highest standards proceed to the next stage, minimizing waste and guaranteeing final product integrity.

GMP-Compliant Design

Adherence to Good Manufacturing Practices (GMP) is non-negotiable in pharmaceutical, food, and chemical production. Aligned engineered the GZPK Series with these stringent standards at the forefront of its design, ensuring every tablet produced is safe, pure, and of the highest quality. The machine’s construction and operational features reflect a deep commitment to hygiene and contamination prevention.

The GZPK Series uses high-grade stainless steel for all parts that come into direct contact with raw materials and finished tablets. Aligned also constructs the machine's external body from stainless steel, providing a durable, non-corrosive, and easy-to-clean surface. This comprehensive use of compliant materials is fundamental to its hygienic design.

A key feature is the fully enclosed structure, which completely isolates the tablet compression zone. This design creates a physical barrier separating the clean production area from the machine's mechanical drive system. This separation effectively prevents lubricants, dust, or other potential contaminants from entering the compression chamber.

GMP by Design 🛡️ The GZPK Series' design philosophy ensures every aspect—from material selection to structural layout—actively prevents cross-contamination and simplifies validation processes. This compliance with both GMP and FDA standards guarantees product safety and integrity.

Furthermore, the machine is optimized for easy and thorough cleaning to prevent batch-to-batch cross-contamination. Key design elements supporting this include:

• Smooth, Polished Surfaces: The turret and contact parts feature smooth surfaces with no dead corners, eliminating areas where powder can accumulate.
• Sealed Compression Chamber: The chamber is fully sealed with transparent organic glass windows, allowing for clear observation while keeping the environment clean.
• Easily Detachable Components: Many parts, including the feeding system and punches, are designed for quick disassembly, facilitating rapid cleaning and changeovers.

This meticulous attention to GMP compliance makes the GZPK Series Automatic Tablet Press Machine a reliable and secure choice for regulated manufacturing environments.

Key Benefits of This Automatic Tablet Press Machine

Adopting the GZPK Series from Aligned brings significant operational advantages to any manufacturing facility. The machine's design prioritizes efficiency, quality, and flexibility, delivering tangible returns on investment and enhancing production capabilities across the board.

Enhanced Production Efficiency

The GZPK Series directly addresses the need for high-volume output in modern manufacturing. Aligned engineered these machines for continuous operation, enabling businesses to meet demanding production schedules and scale their output significantly. The powerful drive system and optimized turret speed work together to maximize throughput without sacrificing stability.

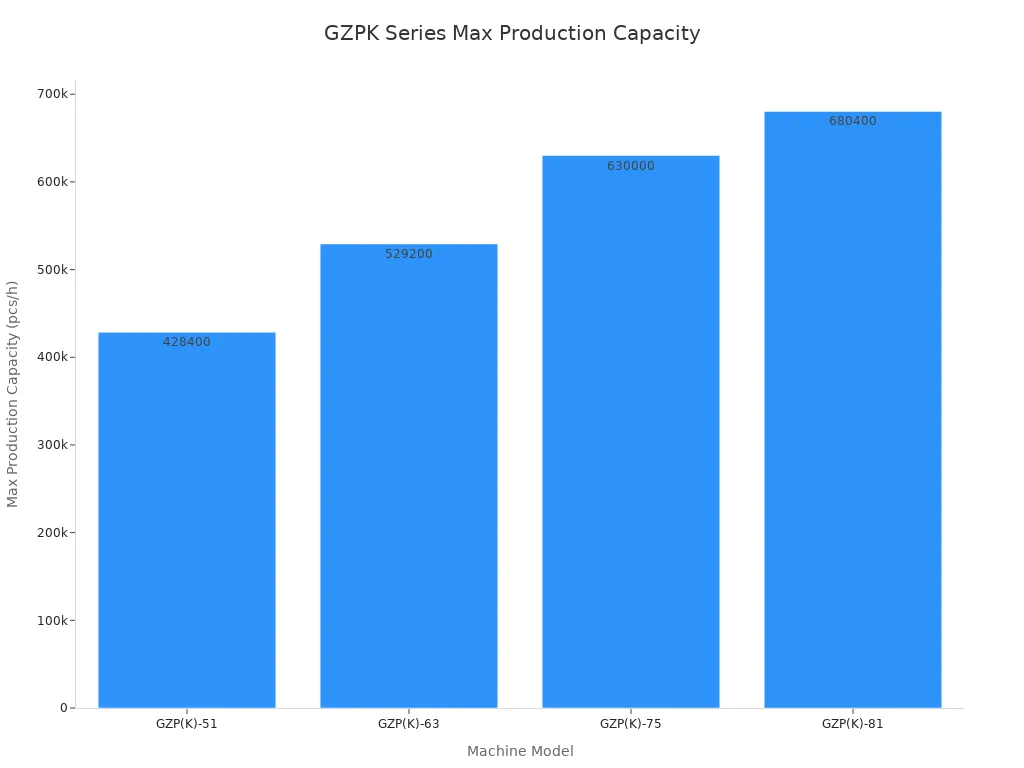

This focus on high capacity is evident across the entire series. Different models offer a range of production speeds to match specific business needs, with some capable of producing over half a million tablets per hour.

The high-output models, such as the GZP(K)-730 Series, further elevate production capacity, reaching up to 680,400 tablets per hour. This remarkable efficiency minimizes production time and lowers the cost per unit.

Superior Tablet Quality and Consistency

The GZPK Series ensures every tablet meets precise specifications through its advanced two-step compression system. This process involves both pre-compression and main compression, which is critical for achieving uniform tablet weight, hardness, and integrity.

The Two-Step Compression Advantage ⚙️

1. Pre-compression: This initial stage lightly compresses the powder. Its primary function is to remove trapped air from the raw material, which prevents capping and ensures uniform density.
2. Main compression: Following pre-compression, the material moves to the main pressure rollers. This stage applies the final, powerful force needed to form a solid tablet with the target hardness and weight. Operators can easily adjust the pressure intensity via the HMI.

This dual-pressure design allows for extended compression time, which is especially important for large tablets or difficult-to-compress materials. It guarantees stable operation without deformation even under heavy loads, resulting in consistently high-quality tablets and minimal variation across batches.

Versatile Applications

While ideal for pharmaceuticals, the GZPK Series is a highly versatile Automatic Tablet Press Machine. Its robust construction and ability to handle a wide range of granular materials make it suitable for numerous industries. This flexibility allows businesses to diversify their product offerings with a single, reliable piece of equipment.

Beyond medicine, the GZPK Series is widely used to manufacture products in various sectors:

• Food: Candies, soft sweets, dry milk tablets, and health food supplements.
• Chemical: Detergent tablets, catalysts, and other chemical compounds.
• Electronics & Ceramics: Pressing materials for batteries and ceramic components.

This adaptability makes the GZPK Series a valuable asset for contract manufacturers and companies operating in multiple markets. It provides the operational freedom to pivot between different products and industries, maximizing the machine's utility and return on investment.

Stable Operation Under Heavy Load

Aligned engineered the GZPK Series for exceptional durability and consistent performance under demanding production conditions. The machine's ability to operate stably under heavy loads is a direct result of its superior structural design, high-quality materials, and robust mechanical components. This ensures long-term reliability and protects the investment in the equipment.

The machine's stability begins with its foundation. A robust main body, constructed from high-strength cast iron, provides the necessary rigidity to absorb operational vibrations and withstand immense internal pressures. This solid, four-post frame prevents flexing or deformation during the high-force compression cycle.

This powerful construction allows the machine to handle significant compression forces, which are essential for producing dense, high-quality tablets. The GZPK Series consistently delivers the high pressure needed to form perfect tablets from even the most challenging materials. Specific models demonstrate this capability clearly.

Built for Endurance ⚙️ The machine's core components are intentionally over-engineered. The turret is crafted from a single piece of ductile iron and treated for exceptional hardness. The pre-pressure and main pressure rollers are made from high-grade bearing steel, enabling them to endure continuous high-pressure cycles without wear.

This meticulous attention to structural integrity ensures that the GZPK Series can run continuously at maximum capacity. The design minimizes vibrations, maintains punch and die alignment, and guarantees consistent tablet quality batch after batch. This focus on durability makes this Automatic Tablet Press Machine a reliable workhorse for any large-scale manufacturing operation.

How to Operate and Maintain the GZPK Series

Aligned designed the GZPK Series for both powerful performance and straightforward operation and maintenance. Its user-centric features and robust construction simplify daily tasks, ensuring long-term reliability and optimal uptime.

Simplified User-Friendly Controls

Operators manage the GZPK Series through an intuitive Human-Machine Interface (HMI) powered by a Siemens PLC. This system provides complete control over the production process. The clear touch-screen display offers access to various operation pages for production, parameter configuration, and alarms. Key monitored parameters include:

• Production speed and total running time
• Real-time punch pressure curves and deviation monitoring
• Automatic tablet weight control data
• Finished product quantity and waste tablet counts
• Fault alarms with detailed cause and time information

The system also features password protection for critical settings and allows for automatic shutdown once a target output is reached. This comprehensive control ensures operators can manage the Automatic Tablet Press Machine with precision and confidence.

Tool Changing and Setup

The GZPK Series features a design that facilitates quick and easy tool changing. This minimizes downtime between production batches. The turret, punches, and dies are engineered for straightforward removal and installation. Operators can efficiently swap tooling to accommodate different tablet sizes and shapes, enhancing the machine's versatility. The simplified setup process allows production to resume quickly, maximizing operational efficiency.

Routine Maintenance Checklist

Regular maintenance is essential for peak performance. The GZPK Series incorporates an intermittent micro-flow quantitative automatic lubrication system. This advanced system precisely lubricates the punches, tracks, and pressure rollers, preventing contamination and extending the machine's service life.

Maintenance Tip 💡 A consistent maintenance schedule is crucial. Following a daily, weekly, and monthly checklist ensures the machine remains in excellent working condition and prevents unexpected downtime.

A basic routine includes:

• Daily: Visually inspect all components. Clean powder residue from surfaces. Check the lubricant level in the automated system and refill if necessary.
• Weekly: Perform a detailed inspection of punches and dies. Check the feeder system for any blockages.
• Monthly: Lubricate all moving parts. Inspect the compression rollers and bearings for wear. Assess if any components require adjustment.

Easy Cleaning Procedures

Aligned engineered the GZPK Series with meticulous attention to cleaning and sanitation protocols. The machine’s design simplifies cleaning procedures, which is essential for preventing cross-contamination and ensuring compliance with GMP standards. This focus on hygiene minimizes downtime between batches and guarantees product purity.

The machine incorporates several features that facilitate rapid and thorough cleaning:

• Smooth, Polished Surfaces: All contact parts and the turret have smooth, polished surfaces. This design eliminates dead corners where powder residue could accumulate, making wipe-downs fast and effective.
• Detachable Components: Key components, including the feeder system, punches, and dies, are designed for quick and easy disassembly. Operators can remove these parts without specialized tools, allowing for comprehensive off-line cleaning.
• Isolated Compression Zone: The tablet compression chamber is fully sealed and separated from the mechanical drive system. This isolation prevents lubricants and other potential contaminants from entering the clean production area.
• High-Quality Materials: The extensive use of stainless steel provides a non-porous, corrosion-resistant surface that is simple to clean and sanitize.

Cleaning Best Practices 🧼 A structured cleaning process ensures maximum effectiveness. Operators typically follow a four-step method for a complete changeover:

1. Disassembly: Carefully remove all detachable contact parts.
2. Cleaning: Wash the components and the compression chamber according to approved SOPs.
3. Drying: Thoroughly dry all parts to prevent moisture from affecting the next production batch.
4. Reassembly: Reinstall all components and perform a final inspection.

This streamlined cleaning capability makes the GZPK Series Automatic Tablet Press Machine an exceptionally efficient and reliable solution for manufacturers in regulated industries. It allows for faster product changeovers while upholding the strictest standards of hygiene and safety.

---

The GZPK Series from Aligned excels with its high speed, precision automation, and operational stability. It stands as the ideal solution for businesses aiming to scale up tablet production while ensuring superior quality and efficiency. This reputation for excellence is reflected in customer feedback.

• "The company has a good reputation in this industry, and it turned out that choosing them was a good choice." - Eleanore, Angola

Contact Aligned today for a quote or a detailed consultation on how the GZPK series can meet your specific needs.

FAQ

What industries can use the GZPK Series?

The GZPK Series serves multiple industries. Its versatile design makes it ideal for pharmaceutical, food, chemical, and electronics manufacturing. Aligned engineered the machine to handle a wide range of granular materials, ensuring broad application and a high return on investment for diverse production needs.

How does the machine ensure consistent tablet quality?

The GZPK Series uses a two-step compression system with pre-compression and main compression. This process removes air and ensures uniform density. An automatic weight control system also monitors tablets and rejects any that fall outside set parameters, guaranteeing batch consistency.

Is the GZPK Series difficult to operate?

No, Aligned designed the GZPK Series for user-friendly operation. It features a Siemens PLC control system with an intuitive touch-screen HMI. The interface provides clear access to all production parameters, alarms, and settings, simplifying management of the Automatic Tablet Press Machine.

What makes the machine GMP-compliant?

The GZPK Series meets GMP standards through its hygienic design. It uses stainless steel for all contact parts and features a fully sealed compression chamber. This design prevents cross-contamination and simplifies cleaning, ensuring product safety and purity in regulated environments.
